Name: Panasonic Guard Station - IP VDP - VL-GC3700BX-E
Brand: Panasonic
SKU: VL-GC3700BX-E
Availability: InStock

Panasonic Guard Station – IP VDP – VL-GC3700BX-E

₹145,000.00

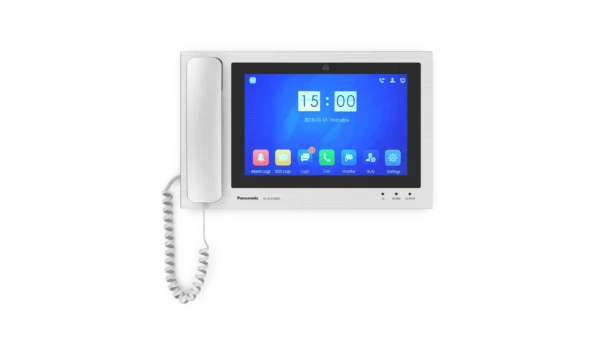

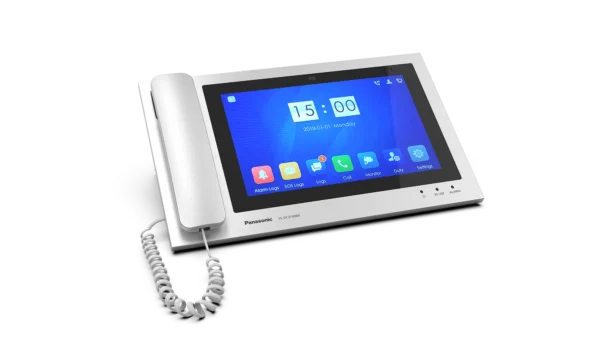

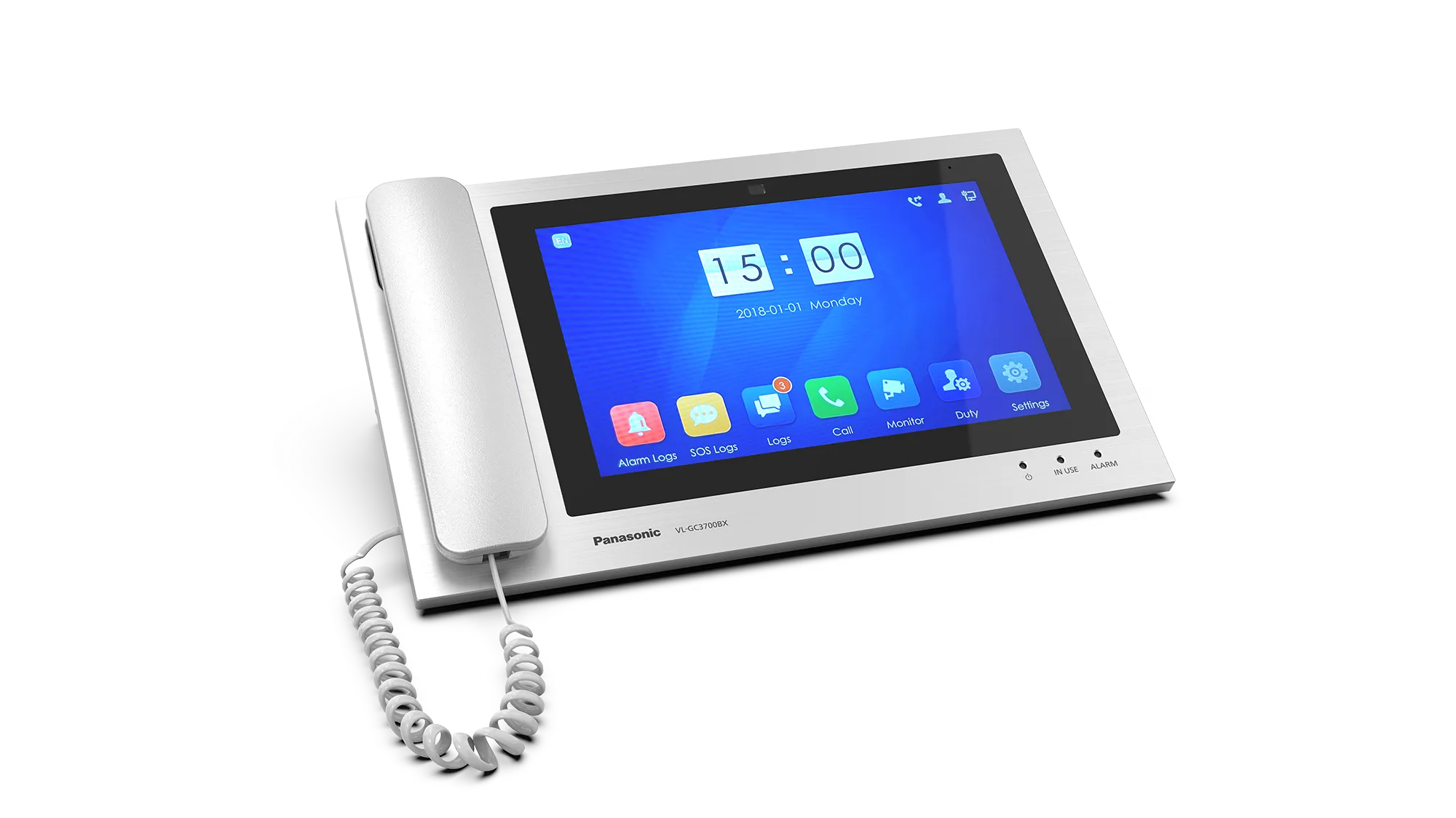

Guard Station with 10″ Screen for IP VDP System

10 Inch Touchscreen Display
Video Communication
1.3 MP HD Camera
External IP CCTV Camera integration
Tamper Alerts
SOS Function
Custom Ringtone Support

Description

Key Features:

Introducing our advanced Video Door Phone, equipped with a range of features to enhance security and convenience at your doorstep. With a spacious 10” touchscreen display, navigation and control are effortless and intuitive. Capture clear and detailed video footage with the 1.3 MP HD camera, ensuring reliable identification of visitors. Engage in seamless video communication with visitors, enhancing security and convenience. Expand surveillance coverage with external IP CCTV camera integration, ensuring comprehensive monitoring of your property. Stay informed and proactive with tamper alerts, providing instant notifications of any unauthorized access attempts. Plus, with the SOS function and custom ringtone support, enhance safety and personalize your communication experience. Experience the ultimate in security and convenience with our feature-rich Video Door Phone solution.

10” Touchscreen Display: Enjoy a large and intuitive touchscreen interface for effortless navigation and control of the video door phone features.

1.3 MP HD Camera: Capture high-definition video footage with clarity and detail, ensuring clear identification of visitors.

Video Communication: Engage in two-way video communication with visitors at your door, enhancing security and convenience.

External IP CCTV Camera Integration: Seamlessly integrate external IP CCTV cameras for expanded surveillance coverage and enhanced security monitoring.

Tamper Alerts: Receive instant notifications in case of tampering with the system, ensuring proactive response to security breaches.

SOS Function: Activate the SOS function in emergencies to quickly summon assistance or alert designated contacts, enhancing safety and security.

Custom Ringtone Support: Personalize your experience by setting custom ringtones, adding a touch of individuality to your communication system.

Specifications:

Model Number & Model Name	VL-GC3700BX-E Guard Station

Power Source	Power distributor (VL-PC3800BX:sold separately) or Power supply unit (VL-PC3400BXB/C/D:sold separately) 27V DC, 0.3A
Power Consumption	Standby: 3.0 W, Operating: 8.0 W
Dimensions (H x W x D) (Excluding protruding sections)	Approx. 210 mm x 336 mm x 34 mm
Mass (Weight)	Approx. 2000 g
Operating Environment	Ambient temperature: Approx. -10 ℃ to +55 ℃ Relative humidity (non-condensing): up to 90 %
Display	10.1-inch wide colour display with touch screen (1280×800 pixels)
Display Language	English, Chinese, Vietnamese and Indonesian
Talking Method	Hands/Hands-free
Network Interface	RJ45，10BASE-T/100BASE-TX (Auto MDI/MDI-X)
Network Protocol	IPv4, TCP, ICMP, UDP, RTSP, HTTP, DNS, RTP, RTMP, ARP, NTP
Wiring	UTP (cat.5e or higher)
Expanded Interface	Support for electric lock releasing (entrance unlocking) x 1
Viewing Angle	Horizontally: Approx. 73°, Vertically: Approx. 45°
Image Sensor / Camera (Pixel)	2.0 M pixels CMOS sensor 1/2.7-inch CMOS sensor 3.7mm EFL
Minimum Illuminance Required	0.01 lx (within approx. 50 cm from the camera lens)
Lighting Method	White coloured LED lights
Video / Audio Format	Video: H.264, Audio: G.711
IP rating (Ingress Protection)	IP30
IK rating (Impact Protection)	—
Recording	Internal memory (image and audio can be saved)
Installation Method	Desktop / Flush mount
External Material	AL + Tempered glass
Colour	Aluminum color
Operation System	Linux
CPU	ARM CORTEX-A7 Dual Core
RAM	1GB (8Gbit)
Flash	256MB (2Gbit)
